รายละเอียดสินค้า:
|
| ชื่อผลิตภัณฑ์: | แผงรังผึ้งอลูมิเนียม | ขนาด: | 1,500*2000 มม. หรือปรับแต่งได้ |
|---|---|---|---|
| ความยาวด้าน: | 6, 7, 8, 10mm หรือสามารถปรับแต่ง | แผงอลูมิเนียมหนา: | 0.8, 1.0, 1.2 มม. หรือปรับแต่งได้ |
| แผงด้านบนและด้านล่าง: | อลูมิเนียม, HPL, FRP, หินหรือปรับแต่งได้ | การรักษาพื้นผิว: | PVDF, PE, ออกซิเดชันขั้วบวก |
| วัสดุหลัก: | แกนรังผึ้งอลูมิเนียม | ความหนาของฟอยล์: | 0.06, 0.076, 0.1 มม. |
| วัสดุ: | Al3003 และ Al5052 | สี: | สีธรรมชาติอลูมิเนียมหรือปรับแต่งได้ |
| ความหนา: | 32 มม. หรือปรับแต่งได้ | ข้อได้เปรียบ: | fireproof, burrfree |

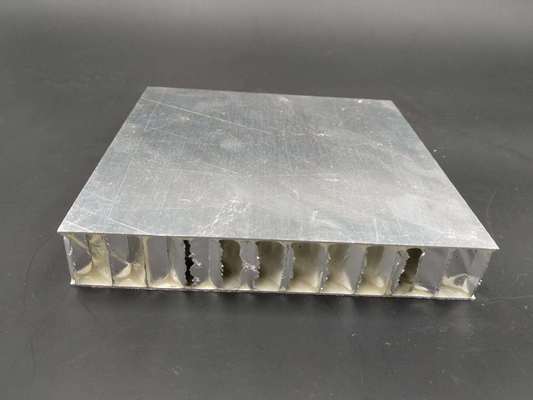

Manufacturer Of Aluminum Honeycomb Panel Solar Panels Al3003 For Sales
1. Descriptions:
Characteristics of Aluminum Honeycomb Panels in Solar Panel Applications
1. Lightweight yet Strong – Aluminum honeycomb panels offer a high strength-to-weight ratio, reducing the overall load on solar panel structures while maintaining structural integrity.
2. Excellent Stiffness – The honeycomb core provides superior rigidity, preventing deformation under wind, snow, or mechanical stress, ensuring long-term stability for solar arrays.
3. Thermal Management – The honeycomb structure enhances heat dissipation, improving solar panel efficiency by reducing thermal buildup.
4. Corrosion Resistance – Aluminum’s natural oxidation resistance makes it suitable for outdoor applications, ensuring durability in harsh weather conditions.
5. Easy Installation – The lightweight and modular design simplify mounting and integration with solar panel frameworks.
6. Vibration Damping – The honeycomb core absorbs vibrations, protecting sensitive photovoltaic components from mechanical stress.
7. Customizable Design – Can be tailored in thickness, density, and surface treatments to meet specific solar panel requirements.
8. Eco-Friendly & Recyclable – Aluminum is sustainable, aligning with the green energy principles of solar technology.
These features make aluminum honeycomb panels an ideal choice for enhancing the performance and longevity of solar power systems.
2. Specifications:
| Aluminum honeycomb panel | |
| Panel total thickness | 5mm-50mm or Customized |
| Width | 1220mm,1500mm or Customized |
| Length | 2440mm or Customized |
| Surface finish | PE/PVDF/Anodic oxidation |
| Color |
White, Sparkling Silver, WoodenGrain, Mirror, Brushed or other color as requested |
| Applications | Decorative material for buildings, home ,office, sign board, etc |
| Specification of honeycomb core | |||||
| Side length(mm) | 0.6, 0.8, 1, 1.83, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 50 | ||||
| Foil thickness(mm) | 0.015, 0.021, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.15, 0.2 | ||||
| Alloy | Al3003 | ||||
| Supply form | Unexpanded(block, strip) or expanded(slice); Unperforated or perforated; Slotted or unslotted | ||||
| Technical Data Sheet | |||||
|
Specification |
Side length (mm) |
Density (kg/m³) |
Compression strength (MPa) |
L-Shear strength (MPa) |
W-Shear strength (MPa) |
| BHC3003-5-0.03 | 5 | 27 | 0.53 | 0.44 | 0.24 |
| BHC3003-5-0.04 | 5 | 31 | 0.66 | 0.53 | 0.3 |
| BHC3003-4-0.03 | 4 | 33 | 0.73 | 0.58 | 0.33 |
| BHC3003-4-0.04 | 4 | 39 | 0.98 | 0.75 | 0.43 |
| BHC3003-5-0.05 | 5 | 41 | 1.07 | 0.8 | 0.47 |
| BHC3003-3-0.03 | 3 | 44 | 1.18 | 0.89 | 0.52 |
| BHC3003-5-0.06 | 5 | 49 | 1.43 | 1.03 | 0.60 |
| BHC3003-3-0.04 | 3 | 52 | 1.6 | 1.15 | 0.67 |
| BHC3003-4-0.05 | 4 | 53 | 1.65 | 1.18 | 0.69 |
| BHC3003-4-0.06 | 4 | 61 | 2.07 | 1.48 | 0.86 |
| BHC3003-2-0.03 | 2 | 66 | 2.39 | 1.7 | 1.00 |
| BHC3003-5-0.08 | 5 | 67 | 2.45 | 1.74 | 1.02 |
| BHC3003-3-0.05 | 3 | 68 | 2.50 | 1.78 | 1.04 |
| BHC3003-2-0.04 | 2 | 77 | 3.10 | 2.18 | 1.25 |
|
BHC3003-Beecore Aluminum Honeycomb Core, 3003 Series |
|||||
3. Applications:
• Gas piping, cables, building materials, etc
• Curtain wall decoration for buildings where security is important, such as airport, hospital and research center
• Curtain wallboards for outside walls of normal buildings
• Renovations for old buildings and movable houses
• Decoration for indoor wall, ceiling, bathroom, kitchen and balcony
• Facades
• Billboards, exhibition desks and notice boards
• Wallboards and ceilings for tunnels
• Materials for industrial application, car and ship bodies
4. Aluminum honeycomb panel has several advantages:
• Excellent fireproof property
• Super peeling strength
• Perfect cold resistance performance
• Excellent surface flatness and smoothness
• Superior weather, corrosion, pollutant resistance
• Even coating, various colors
• Superior impact resistance
• Lightweight and easy to process
• Easy to maintain
5. Aluminum honeycomb panel of more pictures:
6. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, was founded in 2009. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
7. Factory show
8. FAQ
Q1. What is aluminum honeycomb panel usd for?
A: Aluminum honeycomb panel which has excellent rigidity and is one of the best metal wall materials. It has been widely used in the decoration of modern architecture, trains, automobiles, shipbuilding, building materials industry, furniture industry and so on.
Q2. What are the advantages of aluminum honeycomb panel?
A: Aluminum honeycomb panel has the advantages of light weight-high strength, environmental protection and no pollution, excellent surface flatness and smoothness, superior weather, corrosion, pollutant resistance, even coating, various colors.
.
Q3. What is the packaging method of aluminum honeycomb panel?
A: Aluminum honeycomb panel of samples are packed in cardboard and bulk orders are packed in plywood cases.
